法蘭式鑄鐵直通型船用止回閥
GB/T592-1993船用法蘭鑄鐵止回閥 Marine cast Iron flanged check valves 性能規范 Technical Data A、AS型法蘭式鑄鐵直通型船用 止回閥 性能規范 公稱壓力Nominal Pressure(MPa) 公稱通徑 Nominal Diameter(mm) 適用介質 Applicable Medium 0.6 50-300 海水...
產品型號：A、AS
產品口徑（DN）：20~150(mm)
產品壓力（PN）：0.6~1.6(Mpa)
更新日期：2015-07-16
免費詢價
24小時免費咨詢電話021-80392609
- 產品詳情
GB/T592-1993船用法蘭鑄鐵止回閥
Marine cast Iron flanged check valves
性能規范 Technical Data
主要零部件材質Materials of Main Parts
Marine cast Iron flanged check valves
性能規范 Technical Data
| 公稱壓力Nominal Pressure(MPa) | 公稱通徑 Nominal Diameter(mm) | 適用介質 Applicable Medium |
|---|---|---|
| 0.6 | 50-300 |
海水、淡水、滑油、燃油和t≤220℃蒸汽 Sea water,Fresh water丄ubricanting oil,Fuel oil,t≤220℃steam. |
| 1.0 | 65-250 | |
| 1.6 | 20-50 |
主要零部件材質Materials of Main Parts
| 零件名稱Parts name | 材料 Material | |
|---|---|---|
| 名稱Name | 牌號Marks | |
| 閥體、閥蓋Body、Cover | 灰鑄鐵 Gray Cast Iron | HT200 |
| 閥盤Disc | 鑄錫青銅 Cast Tin Bronze | ZCuSn10Zn2 |
| 閥座Seat | 鑄鑰青銅 Cast Aluminum Bronze | ZCuAI9Mn2 |

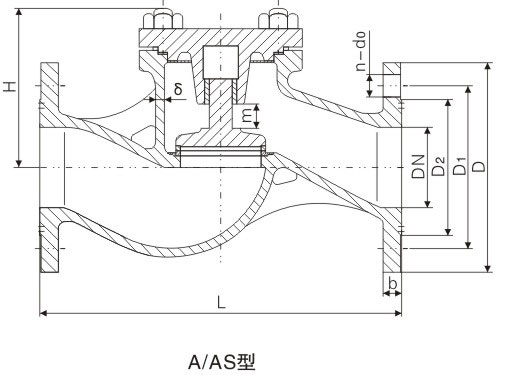

基本尺寸Dimensions
|
公稱壓力 PN (Mpa) |
公稱通徑 DN (mm) |
結構尺寸 Structure Dimension |
壁厚 Thickness δ |
法蘭 Flange |
螺栓 Bolt |
升程 Lift Range m |
參考重量 Weight(kg) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | H≈ | ||||||||||||
| A型 | A型 | D | D1 | D2 | do | b | n個 | Th. | A型 | ||||
| 1.0 | 65 | 290 | 130 | 9 | 155 | 123 | 104 | 15 | 15 | 6 | M14 | 19 | 15.1 |
| 80 | 310 | 151 | 9 | 170 | 138 | 118 | 15 | 15 | 8 | M14 | 23 | 18.3 | |
| 100 | 350 | 171 | 10 | 190 | 158 | 138 | 15 | 15 | 8 | M14 | 28 | 24.8 | |
| 125 | 400 | 189 | 10 | 215 | 183 | 164 | 15 | 15 | 10 | M14 | 35 | 34.7 | |
| 150 | 480 | 219 | 11 | 240 | 208 | 190 | 15 | 16 | 12 | M14 | 42 | 48.4 | |
| 1.6 | 20 | 150 | 87 | 7 | 95 | 68 | 48 | 13 | 14 | 4 | M12 | 7 | 4.3 |
| 25 | 160 | 89 | 7 | 105 | 73 | 56 | 13 | 14 | 4 | M12 | 7 | 4.4 | |
| 32 | 180 | 93 | 7 | 115 | 83 | 64 | 15 | 15 | 6 | M14 | 9 | 5.3 | |
| 40 | 200 | 105 | 8 | 125 | 93 | 74 | 15 | 16 | 6 | M14 | 12 | 7.3 | |
| 50 | 230 | 117 | 8 | 135 | 103 | 84 | 15 | 16 | 6 | M14 | 15 | 8.9 | |
|
公稱壓力 PN (Mpa) |
公稱通徑 DN (mm) |
結構尺寸 Structure Dimension |
壁厚 Thickness δ |
法蘭 Flange |
螺栓 Bolt |
升程 Lift Range m |
參考重量 Weight(kg) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | H≈ | ||||||||||||
| AS型 | AS型 | D | D1 | D2 | do | b | n個 | Th. | AS型 | ||||
| 0.6 | 50 | 230 | 117 | 8 | 140 | 110 | 90 | 14 | 16 | 4 | M12 | 15 | 9.4 |
| 65 | 290 | 130 | 9 | 160 | 130 | 110 | 14 | 16 | 4 | M12 | 19 | 15.5 | |
| 80 | 310 | 151 | 9 | 190 | 150 | 128 | 18 | 18 | 4 | M16 | 23 | 19.2 | |
| 100 | 350 | 171 | 10 | 210 | 170 | 148 | 18 | 18 | 4 | M16 | 28 | 28.6 | |
| 125 | 400 | 189 | 10 | 240 | 200 | 178 | 18 | 20 | 8 | M16 | 35 | 38.2 | |
| 150 | 480 | 219 | 11 | 265 | 225 | 202 | 18 | 20 | 8 | M16 | 42 | 52.0 | |
| 1.0 | 65 | 290 | 130 | 9 | 185 | 145 | 122 | 18 | 20 | 4 | M16 | 19 | 18.1 |
| 80 | 310 | 151 | 9 | 200 | 160 | 133 | 18 | 22 | 8 | M16 | 23 | 21.6 | |
| 100 | 350 | 171 | 10 | 220 | 180 | 158 | 18 | 24 | 8 | M16 | 28 | 29.2 | |
| 125 | 400 | 189 | 10 | 250 | 210 | 184 | 18 | 26 | 8 | M16 | 35 | 40.2 | |
| 150 | 480 | 219 | 11 | 285 | 240 | 212 | 22 | 26 | 8 | M20 | 42 | 56.4 | |
| 1.6 | 20 | 150 | 87 | 7 | 105 | 75 | 58 | 14 | 16 | 4 | M12 | 7 | 4.8 |
| 25 | 160 | 89 | 7 | 115 | 85 | 68 | 14 | 16 | 4 | M12 | 7 | 5.1 | |
| 32 | 180 | 93 | 7 | 140 | 100 | 78 | 18 | 18 | 4 | M16 | 9 | 7.1 | |
| 40 | 200 | 105 | 8 | 150 | 110 | 88 | 18 | 18 | 4 | M16 | 12 | 9.3 | |
| 50 | 230 | 117 | 8 | 165 | 125 | 102 | 18 | 20 | 4 | M16 | 15 | 11.4 | |
聲明：本文中所有文字、數據、圖片均只適用于參考，法蘭式鑄鐵直通型船用止回閥性能參數、結構尺寸參數、價格等詳情，請聯系我們，電話：021-80392609。
-
